| Data Center Enclosures-Data Center Enclosure-Data Center Fiber Optic Enclosures-Corning Data Center Enclosures- Data Center Patch Panels-Data Center Fiber Optic Patch Panelss- Wholesale Fiber Optic Enclosure Pricing- Outdoor Fiber Optic Enclosures Fiber Optic Enclosures-Fiber Optic Patch Panels- Wall Mount Fiber Optic Patch Panels- 24 Port Fiber Optic Patch Panels-Indoor Fiber Optic Patch Panels - 48 Port Fiber Optic Patch Panels-72 Port Fiber Optic Patch Panels- 144 Port Patch Panels- Rack Mount Fiber Optic Patch Panels- Fiber Optic Frames- Fiber Optic Main Distribution Frame -Network Bays- Open Bay Frame Systems
Please find our line of Plenum Innerduct and Data Center Fiber Optic Enclosures Below
Plenum Innerduct has One Of The Largest Selections Of Network Racks & Data Cabinets At Discounted Prices In The U.S.

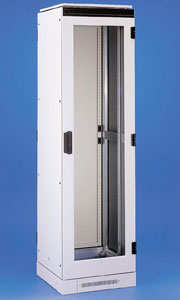

Data Cabinets - Colocation Racks- Server Racks- By
16 Port LC Fiber Optic Rack Enclosure
32 Port LC Rack Mount Enclosure
American Data Supply carries a complete line of data center enclosures and fiber optic enclosures that are compatible with the Corning Fiber Optic Enclosure Line of products including our Corning (compatible) fiber optic patch panels, outdoor fiber optic enclosures,wallmount fiber optic panels and rackmount fiber optic patch panel fiber optic enclosures which are designed for direct termination of up to 144 fibers. We carry a full line of fiber optic enclosures and fiber optic patch panels from ICC, Signamax, Century, Emerson-Fiberconn, Fiber Connections, Corning, Telect, Superior , ADC and others.The RAC series patch panel accommodates up to 12 modular panels and is equipped with routing guides to limit bend radius and enhance strain-relief control. The heavy-duty metal body provides excellent protection for the inside fibers. We also offer a large variety of fiber optic connector adapters that are offered to meet your specific requirements. MTP module cassettes and module pre-assemblies are available for easy fiber installation and management. Fiber-Conn's rackmount patch enclosures are designed for direct termination of up to 144 fibers. The RAC series accommodates up to 12 modular panels and is equipped with routing guides to limit bend radius and enhance strain-relief control. The heavy-duty metal body provides excellent protection for the inside fibers. A large variety of connector adapters are offered to meet your specific requirements. MTP module cassettes and module pre-assemblies are available for easy fiber installation and management. Need Fiber Optic Adapters-Feed Through Adapters? See our partial inventory of fiber optic enclosures below- we have listed Corning, Corning compatible, and Signamax fiber optic enclosures. We also specialize in custom fiber optic enclosures- Call or Click Here us or more information at (866) 342-3721 for all you fiber optic patch panel and fiber optic enclosure needs. Remember- we meet or beat all USA Based Pricing!
Call (866) 342-3721 Or Click On The Chat Button At The Top Of The Page To Talk To One Of Our Representatives
NEW! Century Fiber Optic Enclosures-
New Telect Fiber Optic Enclosure-click
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Data Cabinets-Racks-Raceways
Data Cabinets- Racks
Data Cabinets-Racks-RacewaySystems
We Supply FTTH Projects-SBC-Verizon
Fiber To The Curb/Home Fiber Optic-OSP-Fiber Test Equipment
Part No. WAC-1X-Price
Part No. WAC-2X-Price
Part No. WAC-4X- Price
Part No. WAC-8X- Price
Part Number |
Description |
Suggested Price |
UFE4-B |
4-Module (24 to 48 Fiber) Rack |
|
UFE6-B |
6-Module (36 to 72 Fiber)Rack |
|
UFE12-B |
12-Module (72 to 144 Fiber) Rack |
|
FST-12A |
12-Fiber Aluminum Splice Tray for UFE Series Enclosures |
|
FST-24A |
24-Fiber Aluminum Splice Tray for UFE Series Enclosures |
Slide-Out Rack-Mount Panel2-Module Low Profile Slide-Out Rack Mount Fiber Optic Enclosure
Part Number |
Description |
Price |
SL2M-B |
2-Module (12 to 24 Fiber) Rack |
|
FST-2M-B |
12 Fiber Splice Tray for SL2M-B |
Wall Mount Fiber Optic Enclosures-more info
Signamax wall-mount fiber optic enclosures manage, protect & organize fiber optic terminations for single and multi-mode fiber optic cables. Enclosures accept Signamax modules to accommodate a variety of connector interfaces The WFE-2 supports from 12 to 24 fiber counts while the WFE4 accommodates from 12 to 48 fibers. Enclosures and connector modules are ordered separately.
WFE2-B |
WFE4-B |
Signamax Wall |
Wall
Part Number |
Description |
Price |
WFE2-B |
2-Module (12 to 24 Fiber) Wall |
|
WFE4-B |
4-Module (24 to 48 Fiber) Wall |
ST Fiber Optic Panels
Part Number |
Description |
Price |
12ST-FT |
12-Port (12-Fiber) ST SM/MM Fiber Patch Panel |
|
16ST-FT |
16-Port (16-Fiber) ST SM/MM Fiber Patch Panel |
|
24ST-FT |
24-Port (24-Fiber) ST SM/MM Fiber Patch Panel |
|
32ST-FT |
32-Port (32-Fiber) ST SM/MM Fiber Patch Panel |
|
48ST-FT |
48-Port (48-Fiber) ST SM/MM Fiber Patch Panel |
SC Fiber Optic Panels
Part Number |
Description |
Price |
12SC-FT |
12-Port (12-Fiber) SC SM/MM Fiber Patch Panel |
Call or Click Here |
16SC-FT |
16-Port (16-Fiber) SC SM/MM Fiber Patch Panel |
Call or Click Here |
24SC-FT |
24-Port (24-Fiber) SC SM/MM Fiber Patch Panel |
Call or Click Here |
32SC-FT |
32-Port (32-Fiber) SC SM/MM Fiber Patch Panel |
Call or Click Here |
48SC-FT |
48-Port (48-Fiber) SC SM/MM Fiber Patch Panel |
Call or Click Here |
LC Fiber Optic Panels
Part Number |
Description |
Price |
12LC-FT |
12-Port (12-Fiber) LC SM/MM Fiber Patch Panel |
|
16LC-FT |
16-Port (16-Fiber) LC SM/MM Fiber Patch Panel |
|
24LC-FT |
24-Port (24-Fiber) LC SM/MM Fiber Patch Panel |
|
32LC-FT |
32-Port (32-Fiber) LC SM/MM Fiber Patch Panel |
|
48LC-FT |
48-Port (48-Fiber) LC SM/MM Fiber Patch Panel |
MT-RJ Fiber Optic Panels- MTRJ Fi ber Patch Panels
Part Number |
Description |
Price |
12MTRJ-FT |
12-Port (24-Fiber) MT-RJ SM/MM Fiber Patch Panel |
|
16MTRJ-FT |
16-Port (32-Fiber) MT-RJ SM/MM Fiber Patch Panel |
|
24MTRJ-FT |
24-Port (48-Fiber) MT-RJ SM/MM Fiber Patch Panel |
|
32MTRJ-FT |
32-Port (64-Fiber) MT-RJ SM/MM Fiber Patch Panel |
|
48MTRJ-FT |
48-Port (96-Fiber) MT-RJ SM/MM Fiber Patch Panel |
WFE2-B
12-Port Fiber Optic Mini Wall
Part Number |
Description |
Price |
12MST-FT |
12-Port (12-Fiber) ST MM/SM Fiber Panel w/89D Bracket |
|
12MSC-FT |
12-Port (12-Fiber) SC MM/SM Fiber Panel w/89D Bracket |
|
12MMTRJ-FT |
12-Port (24-Fiber) MT-RJ MM/SM Fiber Panel w/89D Bracket |
|
12MHST-FT |
12-Port (12-Fiber) ST MM/SM Fiber Hinged Panel |
|
12MHSC-FT |
12-Port (12-Fiber) SC MM/SM Fiber Hinged Panel |
|
12MHMTRJ-FT |
12-Port (24-Fiber) MT-RJ MM/SM Fiber Hinged Panel |
Plenum Innerduct Carries A Complete Range Of Fiber Optical Enclosures-Fiber Distribution Enclosures-Optical Entrance Enclosures
AFL Fiber Closures |
 |
 |
 |
 |
 |
 |
AFL-LL-400b Optical Splicing EnclosuresAFL-LL-400b Pedestal Optical Splicing Enclosures |
Due to Rapidly fluctuating Wholesale Metal and Commodity Costs-The Following Fiber Optic Enclosure Prices Are Suggested List Prices Only! Please Call or Click Here To Get Your Discount At
(866) 342-3721 or click on the Chat Button at the top of the page
ATS-RAC-1x Rac Mount Fiber Optic Enclosure
36
Port Rack Mount Fiber Optic Enclosure-
Rack Mount Fiber Patch Panel Part No. ATSRAC-1X- Price $97.00
Dimensions: Width = 17'', Depth = 12'', Height = 1.75''
Weight (unloaded):
10.3 lbs.
Port Capacity: 6-36
Features: 1U rackmount can be loaded with
up to 3 panels with 6 to 36 port capacity. Reversible mounting bracket for 19''
or 23'' racks. 16-gauge steel with black powder finish coat. Steel door at front
and at rear with ¼ turn latches. Top lid removable at both front and rear.
Cable management spools in the rear of the enclosure and cable management rings
to the front for jumper management. Sliding tray for access to both front and
rear. Large entry points at front for easy jumper management, as well as "D" shaped cutouts at rear for access of backbone cable. Accessory pack included with
additional cable management, label holders and screws for securing to rack and
top panels. Labeling kit included for clear and precise identification of ports.
Lead time: In Stock, Immediate Shipment
Part No. ATSRAC-12-OP ATS19" 12 Port Rack Mount Enclosure, Holds 2 ( 6 Packs ) Price $ 56.00
Part No. ATSRAC-24-OP Plenum Innerduct 24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) Price $ 75.00
-
Enclosure is constructed of 16 gauge steel with convenient swivel out base for easy access to fiber optic cables.
- Call or Click Here Plenum Innerduct at (866) 342-3721 to order in black 16 gauge steel.
Part No. ATSRS-24 Plenum Innerduct 19" 24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) ) Price $ 189.00 each
Part No. ATSRS Plenum Innerduct 72 Port Rack Patch & Splice Enclosure ) Price $ 270.00 each
Part No. ATS-F1RM144X- Plenum Innerduct 144 Port Rack Mount Enclosure, Holds 24 ( 6 Packs ) Price $ 245.00 each
Part No. ATS-F1RM24XA -Plenum Innerduct 24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) Price $ 99.00 each Part No. ATS-F1RM48X- Plenum Innerduct 48 Port Rack Mount Enclosure, Holds 6 ( 8 Packs ) Price $ 112.00 each
Part No.ATS-F1RM72X ATSATS 72 Port Rack Mount Enclosure, Holds 12 ( 6 Packs ) Price $170.00 each
------------------------ FIS 24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) ---- --
24
port Rack Mount Fiber Optic Enclosure-
Rack Mount Fiber Optic Patch Panel Part No. ATSRAC-12X-Price
$96.00
Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
Weight (unloaded):
12 lbs.
Port Capacity: 6-24
Features: 2U rackmount can be loaded with
2 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available
with extension brackets for 23'' rack. 16-gauge steel with black powder finish
coat. Removable top lid for easy access to fiber. Spools at the rear for neat
and clean cable management.
Lead time: In Stock, Immediate Shipment
48
Port Rack Mount Fiber Optic Enclosure- Rack Mount Patch Panel Part No. ATSRAC-24X-
Price $100.50
Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
Weight (unloaded):
12 lbs.
Port Capacity: 6-48
Features: 2U rackmount can be loaded with
4 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available
with extension brackets for 23'' rack. 16-gauge steel with black powder finish
coat. Removable top lid for easy access to fiber. Spools at the rear for neat
and clean cable management.
Lead time: In Stock, Immediate Shipment
t
72
Port Rack Mount Fiber Optic Enclosure- Rack Mount Patch Panel Part No. Plenum Innerduct
RAC-2X-
Price $105.00
Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
Weight (unloaded):
12 lbs.
Port Capacity: 6-72
Features: 2U rackmount can be loaded with
6 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available
with extension brackets for 23'' rack. 16-gauge steel with black powder finish
coat. Removable top lid for easy access to fiber. Sliding tray for high-density
situations. Spools at the rear for neat and clean cable management.
Lead time:
In Stock, Immediate Shipment
144
Port Rack Mount Enclosure- Rack Mount Fiber Patch PanelPart No. RAC-4X
Price-
$173.25
Dimensions: Width = 17'', Depth = 12'', Height = 7''
Weight (unloaded): 11.5
lbs.
Port Capacity: 6-144
Features: 4U enclosure can be loaded with 12
panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with
extensions for 23'' racks. 16-gauge steel with corrosion-resistant black powder
finish coat.
Lead time: In Stock, Immediate Shipment
Wall
Mount Fiber Optic Enclosure- Fiber Optic Patch Panel Part No. Plenum Innerduct WAC-1X
Dimensions: Width = 6.5'', Depth = 1.5'', Height = 7''
Weight (unloaded):
2.1 lbs.
Features: Fiber Optic Wall Mount Enclosure- Pact Panel.Wall-mount
enclosure accommodates 1 adapter panel (6-, 8- or 12-fiber panels). 16-gauge steel
with corrosion-resistant black powder finish coat. When closed, wall-mount is
lockable with small pad lock. Entry point at the top and bottom allow user to
enter main enclosure without unwanted handling of fiber optic cables. Side swing
door allows user to run jumper cable assemblies to final destination. Spools and
cable tie down bracket included on the inside compartment.
Lead time: In Stock,
Immediate Shipment ------------------------------------
Wall
Mount Fiber Optic Enclosure- Fiber Optic Patch Panel Part No. ATSWAC-2X
Dimensions: Width = 13'', Depth = 3.6'', Height = 9.2''
Weight (unloaded):
6.85 lbs.
Features: Wall-mount enclosure accommodates 2 panels (6-, 8- or
12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish
coat. When closed, wall-mount is lockable with a 1'' keyed barrel lock. Grommets
at the top and bottom allow user to enter main enclosure without unwanted handling
of fiber optic cables. Side swing door allows user to run jumper cable assemblies
to final destination. Spools and cable tie down bracket included on the inside
compartment.
Lead time: In Stock, Immediate Shipment
Fiber
Optic Enclosure- Fiber Optic Patch Panel Part No. ATSWAC-4X
Dimensions: Width = 13'', Depth = 3.5'', Height = 11.5''
Weight (unloaded):
7.95 lbs.
Features: Wall-mount enclosure accommodates 4 panels (6-, 8- or
12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish
coat. When closed, wall-mount is lockable with a 1'' keyed barrel lock. Grommets
at the top and bottom allow user to enter main enclosure without unwanted handling
of fiber optic cables. Side swing door allows user to run jumper cable assemblies
to final destination. Spools and cable tie down bracket included on the inside
compartment.
Lead time: In Stock, Immediate Shipment
Fiber
Optic Enclosure- Fiber Optic Patch Panel Part No. ATSWAC-8X
Dimensions:
Width = 17'', Depth = 5.87'', Height = 12.2''
Weight: 12.7 lbs.
Features:
Wall-mount enclosure accepts 8 panels (6-, 8- or 12-fiber panels). 16-gauge steel
with corrosion-resistant black powder finish coat. When closed, wall mount is
lockable with a 1'' keyed barrel lock. Grommets at the top and bottom allow user
to enter main enclosure without allowing any unwanted handling of fiber optic
cables. Side swing doors allow user to run jumper cable assemblies to final destination.
Spools and cable tie down bracket included on the inside compartment.
Lead
time: In Stock, Immediate Shipment
144 Port Fiber Optic
Enclosure- Fiber Optic Patch PanelPart
No. ATSWAC-12X-H-06-144- Same as
ATSWAC-8X- but can accomodate 144 fibers. You
can now load up the 144 Count Fiber Patch Panel with SC-ST- or whatever combination
adapters you need. Ideal for tying in large count fiber cable from the "street"
and using this panel as a distribution panel- leading into the building network.-----
---
Wall
Mount Fiber Optic Enclosure- Fiber Optic Patch Panel Part No. ATSWAC-2X
Dimensions: Width = 13'', Depth = 3.6'', Height = 9.2''
Weight (unloaded):
6.85 lbs.
Features: Wall-mount enclosure accommodates 2 panels (6-, 8- or
12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish
coat. When closed, wall-mount is lockable with a 1'' keyed barrel lock. Grommets
at the top and bottom allow user to enter main enclosure without unwanted handling
of fiber optic cables. Side swing door allows user to run jumper cable assemblies
to final destination. Spools and cable tie down bracket included on the inside
compartment.
Lead time: In Stock, Immediate Shipment
Fiber
Optic Enclosure- Fiber Optic Patch Panel Part No. ATSWAC-4X
Dimensions: Width = 13'', Depth = 3.5'', Height = 11.5''
Weight (unloaded):
7.95 lbs.
Features: Wall-mount enclosure accommodates 4 panels (6-, 8- or
12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish
coat. When closed, wall-mount is lockable with a 1'' keyed barrel lock. Grommets
at the top and bottom allow user to enter main enclosure without unwanted handling
of fiber optic cables. Side swing door allows user to run jumper cable assemblies
to final destination. Spools and cable tie down bracket included on the inside
compartment.
Lead time: In Stock, Immediate Shipment
Fiber
Optic Enclosure- Fiber Optic Patch Panel Part No. ATSWAC-8X
Dimensions:
Width = 17'', Depth = 5.87'', Height = 12.2''
Weight: 12.7 lbs.
Features:
Wall-mount enclosure accepts 8 panels (6-, 8- or 12-fiber panels). 16-gauge steel
with corrosion-resistant black powder finish coat. When closed, wall mount is
lockable with a 1'' keyed barrel lock. Grommets at the top and bottom allow user
to enter main enclosure without allowing any unwanted handling of fiber optic
cables. Side swing doors allow user to run jumper cable assemblies to final destination.
Spools and cable tie down bracket included on the inside compartment.
Lead
time: In Stock, Immediate Shipment
144 Port Fiber Optic
Enclosure- Fiber Optic Patch PanelPart
No. ATSWAC-12X-H-06-144- Same as
ATSWAC-8X- but can accomodate 144 fibers. You
can now load up the 144 Count Fiber Patch Panel with SC-ST- or whatever combination
adapters you need. Ideal for tying in large count fiber cable from the "street"
and using this panel as a distribution panel- leading into the building network.
Plenum Innerduct
"Six"
Packs
- ATSP6SCSM - (1) SC SM 6 pack with 6 SC/UPC pigtailsATSP6FCSM - (1) FC SM 6 pack with 6 FC/UPC pigtailsATSP6STSM - (1) ST SM 6 pack with 6 ST/UPC pigtailsATSP8SCSM - (1) SC SM 8 pack with 8 SC/UPC pigtails
- ATSP6DSCSM - (1) Duplex SC SM 6 pack with 12 SC/UPC pigtails
Multimode Six Pack Kits - 3 meters
- ATSP6SCMM - (1) SC MM 6 pack with 6 SC pigtailsATSP8SCMM - (1) SC MM 8 pack with 8 eight SC pigtails
- ATSP6STMM - (1) ST MM 6 pack with 6 ST pigtails
ATSP6SCSM-1-SC Duplex Singlemode 6 Pack with 12-SC/UPC Pigtails Price$ 160.00
ATSP6FCSM-1-FC Singlemode 6 Pack with 6-FC/UPC Pigtails Price $ 92.00
ATS-P6STSM-1-SC Multimode 6 Pack with 6-SC/UPC Pigtails Price $ 50.00 ATSP8SCSM-1-SC Singlemode 6 Pack with 6-SC/UPC Pigtails Price $ 81.00 ATSP6SCMM-1-ST Multimode 6 Pack with 6-ST/PC Pigtails $ 47.00 ATSP8SCMM-1-ST Singlemode 6 Pack with 6-ST/UPC Pigtails Price $ 82.00 ATSP6STMM-1-SC Singlemode 8 Pack with 8-SC/UPC Pigtails Price $ 99.00
Plenum Innerduct
Snap
Six- Packs For Distribution
FramesThese
pre-terminated adapter panels provide convenience to technicians splicing into
fiber distribution frames. Available in 6 or 12 fiber
bundles with TIA-598-A standard color code, these bundled fibers provide cable
management from patchpanel to splice bays. Standard 3 meters. Contact ATSat 1-866-342-3721
for custom lengths and different connector style adapter panels
Singlemode Six Pack- Eight Pack Kits - 3 meters
- ATSC6LSSP - (6) adapters, SC/UPC, 6 fiber pigtail, SM, 3 meters
-
ATSSC6LSSP - (6) duplex adapters, SC/UPC, 12 fiber pigtail, SM, 3 metersATSC6APCSP - (6) adapters, SC/APC, 6 fiber pigtail, SM, 3 metersATSC6DLSP - (6) duplex adapters, LC/UPC, 12 fiber pigtail, SM, 3 meters
-
ATST6LSSP - (6) duplex adapters, ST, 12 fiber pigtail, SM, 3 meters
- Multimode Six Pack- 8 Pack Kits - 3 meters
-
ATSC6LMSP - (6) duplex adapters, SC, 12 fiber pigtail, MM, 3 meters
- ATSP6STMM - (1) ST MM 6 pack with 6 ST pigtails
PRICING:
ATSC6LSSP - 1 SC Duplex Singlemode 6 Pack with 12-SC/UPC Pigtails Price $ 190.70 each
ATSSC6LSSP - 1-SC Singlemode 6 Pack with 6-SC/UPC Pigtails Price $ 76.90 each
ATSC6APCSP - 1 SC Singlemode 6 Pack with SC/APC Pigtails Price $ 95.50 each ATSC6DLSP - 1-LC Duplex Singlemode 6 Pack with 12-LC/APC Pigtails Price $ 190.70 each ATSP6SCMM-1-ST Multimode 6 Pack with 6-ST/PC Pigtails $ 47.00 ATST6LSSP-1ST Multimode 6 Pack with 6 ST/PC Pigtails$ 86.00 each ATST6LSMP -1 -ST Multimode 6 Pack with 6 ST/PC Pigtails Price $ 58.00 each
Pricing For Six Pack-8 Pack Plates For Wall & Rack Mount Fiber Optic Enclosures
| ATS-Blank | Plenum Innerduct Blank Blank Plate with No Holes | $ 4.75 |
| ATSSC6LM6 Loaded-SC Duplex Multimode-Singlemode Adapters | $ 48.80 | |
| ATSFC66 Pack Plate (unloaded) | $ 4.75 | |
| ATSFC6APC6 Pack Loaded with FC/APC Singlemode Adapters | $ 49.20 | |
| ATSF1FC6L6 Pack Loaded w/FC-Multimode/Singlemode Adapters | $ 37.90 | |
| ATSF1LC6DL6 Pack Loaded w/LC Duplex-Singlemode Adapters | $ 52.20 | |
| ATSF1LC6L6 Pack Plate Loaded w/LC Duplex-Multimode Adapers | $ 31.45 | |
| ATSF1MTRJ6L6 Pack Loaded w/MTRJ Multimode Adapters | $ 21.70 | |
| ATSF1SC66 Pack SC Plate ( Unloaded) | $ 4.75 | |
| ATSF1SC6APC6 Pack Loaded w/SC/APC Singlemode Adapters | $ 28.90 | |
| ATSF1SC6L6 Pack Loaded w/SC-Multimode/Singlemode Adapters | $ 19.95 | |
| ATSF1SC88 Pack SC Plate (Unloaded) | $ 4.75 | |
| ATSF1SC8LM8 Pack Loaded with SC Multimode Adapters | $ 24.90 | |
| ATSF1SC8LS8 Pack Loaded w/ SC -Singlemode Adapters | $ 35.75 | |
| ATSF1ST66 Pack ST Plate (Blank- Unloded) | $ 4.75 | |
| ATSF1ST6LM6 Pack Plate Loaded w/ST -Multimode Adapters | $ 21.10 | |
| ATSF1ST6LS6 Pack Loaded w/ ST Singlemode Adapters | $ 29.97 | |
| ATSF1ST88 Pack ST Plate (Unloaded) | $ 4.75 | |
| ATSF1ST8LM8 Pack Loaded w/ ST- Multimode Adapters | $ 23.75 | |
| ATSF1ST8LS8 Pack Loaded w/ ST-Singlemode Adapters | $ 37.75 |
Fiber Optic Enclosure Pricing
AFL Telecommunications
Fiber Closures
Splice
Closures are designed to simplify splice management. Quality engineering reduces
the installation time, training and complexity associated with fiber splicing
in the field. The closures can be installed without the need for special tools,
heat, adhesives, drills, or any powered equipment. Durable and easy to install,
these closures will improve productivity, reduce labor expenses and last the life
of the plant. Closures are designed and tested to Telcordia™ GR-771 requirements
and Rural Utilities Service (RUS) listed.he AFL family of Aerial Weathertight
Splice Closures is designed to provide a cost-effective solution for your aerial
splicing needs. Quality engineering reduces the installation time, training and
complexity associated with fiber splicing in the field. The closures can be installed
without the need for special tools, heat, adhesives, drills, or any powered equipment.
Durable and easy to install, these closures will improve productivity, reduce
labor expenses and last the life of the plant.
* LG-410
* LG-420
* LG-500
* LG-600Features:
* Individual, patented, self-sizing cable grommets and strength member tie downs
provide for cable additions without disturbing those previously installed
* Unique tongue-in-groove closure seal and back-to-back grommet design provides
for a weathertight and insect seal
* Easy to maintain, all aerial closures
are re-enterable without the need for any re-entry kits, special tools or sealants
* Designed and tested to Telcordia™ GR-771 aerial weathertight closure requirements
* Rural Utilities Service (RUS) listed
---
------Wall
Mount Fiber Enclosures----------------------------------------
------------------------------------------- -
CNSLL-24&48 Fiber Termination & Splicing Shelf-CON288HD
- Fiber Termination Patch Panel
CNS024P-Patch & Splice Panel-CON012P
- Fiber Termination Patch Panel- CON024P
- Fiber Termination Patch Panel Fiber
Storage Units (FSU) are used to conveniently and safely store an extra length
of cable along the support strand for later use. Furnished as pairs, these FSUs
feature all aluminum, baked acrylic enamel finish and all basic hardware for attachment
to the support strand. Strand mount support brackets meet Telcordia® specification
and are REA accepted. Galvanized strand clamping devices accommodate 1/4"
to 7/16" strand and meet ASTM specifications A153 and B695.Features:
* Furnished as pairs
|
Outdoor
FTTH-Fiber Pedestals & Enclosures
| ICC
Fiber Patch Panels Click Here12
Port-ST-25 Port ST-SC
|
Front & Rear Loading Fiber Optic Patch Panels
Our new fiber optic enclosures by Contech and fiber patch panels are available in multiple configurations with high density port counts in a minimum of space, which provide an extremely organized above the floor infrastructure and manageable cable reconfiguration. ConTech features a 256 port high density panel with either LC, MT-RJ, or MU connector configurations in the same foot print for migration ease from one connector style to another. Also available are high density 12 to 48 port 1 rack unit panels with ribbon array connectivity MP or MTP connectors Front & Rear Mounted Fiber Optic Enclosures
- Versatile cassettes
High density
Front access
Rear access
Under floor
Innovative wire managementRetro-fit of existing panels LC, MT-RJ, MU, SC duplex Custom silk screening
- 19, 23, or 24 inch mounting
Outdoor-Fiber Pedestals & Enclosures
Pedlock
BDO Series Pedestals are a key element of any FTTP solution. In
both greenfield and brownfield fiber deployments, BDO Pedestals
provide easy access to branch and drop splice while protecting
and storing loose buffer tube fiber optic cables. The exclusive
BDO bracket allows technicians to mount splice trays and splitters
securely with ample access to perform in-field splicing.
BDO Pedestals feature
a non-metallic construction that offers super OSP protection against floods, fire,
dirt, insects and impact. An expanded-capacity split base is designed to easily
install around conduit-fed cable bundles in new construction (excludes 14”
diameter pedestals). BDO pedestals are an ideal solution for rehabilitation of
metallic enclosures, and protection of co-located copper/fiber distribution points.
The CMPH is a versatile OSP closure designed for both new provisioning installations
as well as rehabilitation of existing access points housed in metallic enclosures.
The CMPH’s superior structural strength, outstanding environmental protection
and ease of installation combine to create a long-life housing that reduces operational
expenses.
A two-piece assembly features a lift-off dome and a corrugated channel base. The lift-off dome allows 360º access to internal working areas and includes self-latching locks with secondary bolt locks on both left and right side panels. The dome provides “bell jar” flood protection, eliminates intrusion of wind-blown rain and dust, and prevents unauthorized entry. The base provides ample room for entry of multiple large cables, including conduit. A spacious bottom entry allows technicians to easily slide the base over existing large cable rehabilitation applications.Internally, the CMPH features a sturdy metal bracket with craft-friendly repositionable splice bars, a cable splice support rail, and a 6-point bonding/grounding bar. The spacious internal working area accommodates copper splices of 1,800 to 3,600 pairs or passive fiber optic equipment (interconnect and splitter). The CMPH is an exceptional protection solution for copper/fiber co-locations.
 Main
Distribution Frames- Network Bays-Open Bay Systems |
Call Us at (866) 342-2721 or (866) 650-DATA or click on the Chat Button at the top of the page
Don't Gamble With Quality- Buy American or visit this link for sample pricing
Click For Fiber Optic Assembly Pricing
Click for a general view of fiber optic technology
Home | Cables | Switches | Contact Us | Our Team | Locations
- 2012 All Rights Reserved -
