The PE 89 or Seal Pic FSF PE 89 and Seal Pic FSF PE 39 cables are used for distribution and long distance networks. The Seal Pic FSF 89 comes in 19, 22 gauge and 24 gauge copper cable. The Seal Pic FSF 39 cables come in 19 gauge and 22 gauge copper. These cables are installed into ducts. Copper cable pairs are available from 6- 2400 pairs.The manufacturers include Superior Essex, General, Sterlite and others. We provided the much of the Times Warner build out in the late 1990's.Please call us for any quantity from 100 feet to 1 million feet of more.

NEW WHOLESALE DIVISION - Plenum Innerduct is now providing container load quantity of PE 89 cables to other distributors- suppliers and US Government buyers. We have been supplying the US Army, US Marine Corps PE 89 in Iraq and Afghanistan since 2005. Please call us at (866) 650-3282 for pricing information or click on the chat button at the top of the page to talk to us. . When calling ask for Gil or Will in our wholesale division.

PE 22 OSP Cable Available in strand counts from 6 to 2100, with various wire gauges. Insulated conductors are color coded to telephone industry standards. For aerial installation by attachment to a support strand and/or underground installation in a duct

PE 39 Plenum Innerduct Carries PE – 39 Communication Cable which comes in a six (6) pair cable configurations up to 2400 pairs manufactured for the purpose of direct burial systems communication applications in accordance with the National Electric Code.Conductor construction is soft drawn bare copper meeting the requirements of ASTM Specification B-3. The conductors are 22 awg solid copper.The conductors are insulated with polyethylene (PE) in distinctive colors to facilitate pair identification and are twisted into pairs with varying lays to minimize crosstalk.The interstices between the pairs are filled with an 80 C filling compound and covered with a low density, high molecular weight black polyethylene (PE) Advantages: improved electrical stability, minimum maintenance costs!

Shielding:
BJFA = 0.008" coated aluminum
BJFC = 0.005" copper
BJFG = 0.005" Alloy 194, gopher-resistant
(BJFG recommended for mechanical protection in gopher or severe service areas.)

Filling: The entire cable within the outer jacket is flooded with a petrolatum-polyethylene gel filling compound

PE 89 P 89 Cable Available in pair counts from 6 to 2500 pairs and various wire gauges from 19- 24 gauge. Insulated conductors are color coded to telephone industry standards. Used primarily in buried and ducted environments where moisture protection is needed. Also available with armoring for increased mechanical protection.

PE 89 Configurations

PE 89 Cable	Type PE 89 Copper Cable	Price Per Foot- CALL
PE 89 Cable Part #Plenum Innerduct OSPPE89-06	6 Pair PE 89 Cable - Cable is cut to order- 19 gauge- 6 pair PE 89	Call
PE 89 Cable Part #Plenum Innerduct OSPPE89-12	12 Pair PE 89 Cable- Cable is cut to order-19 Gauge 12 Pair PE 89 Cable	Call
PE 89 Cable Part #Plenum Innerduct OSPPE89-18	18 Pair PE 89 Cable -Cable is cut to order-18 pair- 19 gauge 18 Pair PE 89 Cable	Call
PE 89 Cable Part #Plenum Innerduct OSPPE89-25	25 Pair PE 89 Cable -Cable is cut to order- 19 gauge 25 Pair PE 89 Cable	Call
PE 89 Cable Part #Plenum Innerduct OSPPE89-50	50 Pair PE 89 Cable .278lbs/foot Cable is cut to order	Call
PE 89 Cable Part #Plenum Innerduct OSPPE89-75	75 Pair PE 89 Cable - Cable is cut to order	Call
PE 89 Cable# ATSOSPPE89-100	100 Pair PE 89 Cable .484lbs/foot Cable is cut to order	Call
PE 89 Cable# ATSOSPPE89-150	150 Pair PE 89 Cable .484lbs/foot Cable is cut to order-19 Gauge 150 pair PE 89 Cable	Call
PE 89 Cable Part# OSPPE89-200	200 Pair .PE 89 Cable 945lbs/foot Cable is cut to order	Call
PE 89 Cable Part# OSPPE89-300	300 Pair PE 89 Cable 1.272lbs/foot Cable is cut to order	Call
PE 89 Cable Part# OSPPE89-400	400 Pair PE 89 Cable .1.66lbs/foot Cable is cut to order	Call
PE 89 Cable Part# OSPPE89-600	600 Pair PE 89 Cable 2.532lbs/foot Cable is cut to order	Call
PE 89 Cable Part# OSPPE89-900	900 Pair PE 89 Cable 3.868lbs/foot Cable is cut to order	Call
PE 89 Cable Part# OSPPE89-1200	1200 Pair PE 89 Cable 5.235lbs/foot Cable is cut to order	Call
PE 89 Cable Part# OSPPE89-1500	1500 Pair PE 89 Cable 6.215lbs/foot Cable is cut to order	Call
PE 89 Cable Part# OSPPE89-1800	1800 Pair PE 89 Cable 7.385lbs/foot Cable is cut to order	Call
PE 89 Cable Part# OSPPE89-2100	2100 Pair PE 89 Cable 5.235lbs/foot Cable is cut to order	Call
PE 89 Cable Part# OSPPE89-2400	2400 Pair PE 89 Cable 9.910lbs/foot Cable is cut to order	Call

Prysmian Copper Cables- Call For Container Loads

	xDSL Cables Indoor telecom cables for xDSL applications.
	Conductor: Plain copper 0.4 to 0.9 mm Insulation: Solid, foam-skin, cellular PE Cabling: Pair or quad; unit and sub-unit Size: 10 to 2400 pairs	Water penetration: Filling compound (if specified) Moisture barrier: Aluminium polylaminated tape Sheath: PE Armouring: Helical steel tapes Outer sheath: PE, PVC
	Conductor: Plain copper 0.4 to 0.9 mm Insulation: Solid, foam-skin, cellular PE Cabling: Pair or quad; unit and sub-unit Size: 10 to 2400 pairs	Water penetration: Filling compound (if specified) Moisture barrier: Aluminium polylaminated tape Sheath: PE Armouring: Corrugated steel tapes Outer sheath: PE, PVC
	Conductor: Plain copper 0.4 to 0.9 mm Insulation: Solid, foam-skin, cellular PE Cabling: Pair or quad; unit and sub-unit Size: 10 to 2400 pairs	Water penetration: Filling compound (if specified) Moisture barrier: Aluminium polylaminated tape Sheath: PE Armouring: Steel wires Outer sheath PE, PVC
	Conductor: Plain copper 0.4 to 0.9 mm Insulation: Solid, foam-skin, cellular PE Cabling: Pair or quad; unit and sub-unit Size: 10 to 2400 pairs	Water penetration: Filling compound (if specified) Moisture barrier: Aluminium polylaminated tape Sheath: PE
	Conductor: Plain copper 0.4 to 0.9 mm Insulation: Solid, foam-skin, cellular PE Cabling: Pair or quad; unit and sub-unit Size: 10 to 200 pairs	Water penetration: Filling compound (if specified) Screen/moisture barrier: Wrapped aluminium tapes Aluminium polylaminated tape Sheath: PE Supporting cord: Steel wires
	Aerial - Circular Conductor: Plain copper 0.4 to 0.9 mm Insulation: Solid, foam-skin, cellular PE Cabling: Pair or quad; unit and sub-unit Size: 10 to 200 pairs	Water penetration: Filling compound (if specified) Screen/moisture barrier: Wrapped aluminium tapes Aluminium polylaminated tape Sheath: PE

PE 39

PE 39 Cable	Type PE 39 Copper Cable	Price
PE 39 Cable Part #Plenum Innerduct OSPPE89-06	6 Pair PE 39 Cable - Cable is cut to order- 19 gauge- 6 pair PE 39	Call
PE 39 Cable Part #Plenum Innerduct OSPPE89-12	12 Pair PE 39 Cable- Cable is cut to order-19 Gauge 12 Pair PE 39 Cable	Call
PE 39 Cable Part #Plenum Innerduct OSPPE89-18	18 Pair PE 39 Cable -Cable is cut to order-18 pair- 19 gauge 18 Pair PE 39 Cable	Call
PE 39 Cable Part #Plenum Innerduct OSPPE89-25	25 Pair PE 39 Cable -Cable is cut to order- 19 gauge 25 Pair PE 39 Cable	Call
PE 39 Cable Part #Plenum Innerduct OSPPE89-50	50 Pair PE 39 Cable .278lbs/foot Cable is cut to order	Call
PE 39 Cable Part #Plenum Innerduct OSPPE89-75	75 Pair PE 39 Cable - Cable is cut to order	Call
PE 39 Cable# ATSOSPPE89-100	100 Pair PE 39 Cable .484lbs/foot Cable is cut to order	Call
PE 39 Cable# ATSOSPPE89-150	150 Pair PE 39 Cable .484lbs/foot Cable is cut to order-19 Gauge 150 pair PE 89 Cable	Call
PE 39 Cable Part# OSPPE89-200	200 Pair .PE 39 Cable 945lbs/foot Cable is cut to order	Call
PE 39 Cable Part# OSPPE89-300	300 Pair PE 39 Cable 1.272lbs/foot Cable is cut to order	Call
PE 39 Cable Part# OSPPE89-400	400 Pair PE 39 Cable .1.66lbs/foot Cable is cut to order	Call
PE 39 Cable Part# OSPPE89-600	600 Pair PE 39 Cable 2.532lbs/foot Cable is cut to order	Call
PE 39 Cable Part# OSPPE89-900	900 Pair PE 39 Cable 3.868lbs/foot Cable is cut to order	Call
PE 39 Cable Part# OSPPE89-1200	1200 Pair PE 39 Cable 5.235lbs/foot Cable is cut to order	Call
PE 39 Cable Part# OSPPE89-1500	1500 Pair PE 39 Cable 6.215lbs/foot Cable is cut to order	Call
PE 39 Cable Part# OSPPE89-1800	1800 Pair PE 39 Cable 7.385lbs/foot Cable is cut to order	Call
PE 39 Cable Part# OSPPE89-2100	2100 Pair PE 39 Cable 5.235lbs/foot Cable is cut to order	Call
PE 39 Cable Part# OSPPE89-2400	2400 Pair PE 39 Cable 9.910lbs/foot Cable is cut to order	Call

PE 22 Cable

PE 22Cable	Type PE22 Copper Cable	Pairs	Diameter	Weight
Catalog Number	Size AWG	No. of Pairs	Overall Diameter Inch	Net Weight Lbs/Mft
HW350 02406	24	6	0.38	54
HW350 02412	24	12	0.46	81
HW350 02425	24	25	0.53	132
HW350 02450	24	50	0.67	225
HW350 24100	24	100	0.87	401
HW350 22100	22	100	1.06	589
HW350 02206	22	6	0.46	69
HW350 02212	22	12	0.54	109
HW350 02225	22	25	0.66	184
HW350 02250	22	50	0.82	324
HW350 01906	19	6	0.54	108
HW350 01912	19	12	0.66	180
HW350 01925	19	25	0.82	325
HW350 01950	19	50	1.06	593

Plenum Innerduct Part Number	Description	Due To Fluctuating Wholesale Oil Costs Call For Pricing
PE22 1203	PE22 24AWG 6 pair .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE22 1204	PE22 24AWG 12 pair .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE22 1205	PE22 24AWG 25 pair .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE22 1206	PE22 24AWG 50 pair .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE22 1405	PE22 19AWGÿ 50 pair pair outside plant telephone cable	black/spool/1000'
PE22 1406	PE22 19AWGÿ 25 pair pair outside plant telephone cable	black/spool/1000'
PE38 1205	PE38 24AWG 25 pair .008 aluminum tape shield outside plant telephone cable with 1/4 messenger	black/spool/1000'
PE38 1206	PE38 24AWG 50 pair .008 aluminum tape shield outside plant telephone cable with 1/4 messenger	black/spool/1000'
PE38 1305	PE38 22AWG 25 pair .008 aluminum tape shield outside plant telephone cable with 1/4 messenger	black/spool/1000'
PE38 1306	PE38 22AWG 50 pair .008 aluminum tape shield outside plant telephone cable with 1/4 messenger	black/spool/1000'
PE39 1203	PE39 24AWG 6 pair .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE39 1204	PE39 24AWG 12 pair .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE39 1205	PE39 24AWG 25 pair .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE39 1206	PE39 24AWG 50 pair .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE39 1305	PE39 22AWG 25 pair .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE39 1306	PE39 22AWG 50 pair .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE39 1403	PE39 19AWGÿ 6 pair .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE39 1404	PE39 19AWGÿ 12 pair .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE39 1405	PE39 19AWGÿ 25 pair .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE39 1406	PE39 19AWGÿ 50 pair .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE89 1203	PE89 24AWG 6 pair foam skin .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE89 1205	PE89 24AWG 25 pair foam skin .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE89 1206	PE89 24AWG 50 pair foam skin .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE89 1303	PE89 22AWG 6 pair foam skin .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE89 1305	PE89 22AWG 25 pair foam skin .008 aluminum tape shield outside plant telephone cable	black/spool/1000'
PE89 1306	PE89 22AWG 50 pair foam skin .008 aluminum tape shield outside plant telephone cable

Stub Cable

Stub Cable- Stub Cable is factory process filled cable that is cut to customer specified lengths eliminating time-consuming cable preparation at the customer job site. The Stub Cable features a factory installed pneumatic cable "block" on one end of the cable (a variety of cable types are available; 22, 24, 26 gauge cable with pair counts from 50 to 1800 pair sizes). The cable block prevents air and/or filling compound leakage from pressurized cable plant to non-pressurized cable plant. The cable block is typically located 120 inches from one end of the cable and is sealed using state of the art blocking compounds. The cable block is small in diameter relative to the cable diameter to minimize obstructions and clearances from adjacent cable plant.

Copper Interconnect Enclosures

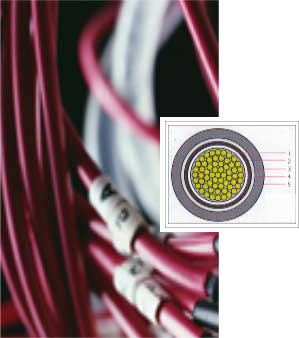

Transition cable- Transition Cable is a factory processed filled cable that is pre-cut to custom lengths. This eliminates time-consuming on-site preparation and the use of hazardous cleaning chemicals in the field. Additionally, cables can be provided with optional factory-installed connector modules and pulling eyes.

Plenum Innerduct Carries PE – 89 Communication Cable which comes in a six (6) pair cable configurations up to 2400 pairs manufactured for the purpose of direct burial systems communication applications in accordance with the National Electric Code.Conductor construction is soft drawn bare copper meeting the requirements of ASTM Specification B-3. The conductors are 22 awg solid copper.The conductors are insulated with polyethylene (PE) in distinctive colors to facilitate pair identification and are twisted into pairs with varying lays to minimize crosstalk.The interstices between the pairs are filled with an 80 C filling compound and covered with a low density, high molecular weight black polyethylene (PE).

The assembly is then wrapped with two metal shield tapes:

- A corrugated .008" thick polymer coated aluminum tape and a corrugated .006" polymer coated steel tape.

Conductor: Soft drawn bare copper (ASTM Spec. B-3). Solid (22 awg)

Inner Jacket: Polyethylene (PE)

Outer Jacket: Polyethylene (PE)

Temperature: 60 C

Resistance: 17.235 OHMS PER M FEET at 68 DEG. F

Call for pricing, minimum order $500.00- Please- Plenum Innerduct offers cutting of cable-For custom cable lengths at an additional cost-

West Coast (866) 342-3721
New Southern CA Office ( 619) 573-4164
East Coast (866) 650-3282 or (727) 547-2200

For More Information On Any of the Products Below- Just click on the Pictures -More Information and Specifications For PE 39 and PE 89 Below

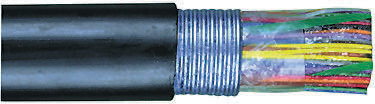

PE 89 Application:
For use in wet environments where protection from moisture is required. Approved for direct burial, duct or aerial installations when supported by a messenger.

PE 89 Conductors:
Solid soft bare annealed copper. Individual conductors are twisted into pairs with varying lay lengths to minimize crosstalk.

PE 89 Insulation:
Dual layer of foamed polyolefin and solid polyolefin.

PE 89 Filling Compound:
Cable core is filled with an extended thermoplastic rubber (ETPR) filling the interstices between the pairs and under the core tape.

PE 89 Core Wrap:
Non-hygroscopic, dielectric tape with overlap.

PE89 Shield:
Corrugated, copolymer coated, 8-mil aluminum tape longitudinally applied with overlap. The shield interfaces are flooded with an adhesive compound to provide a moisture barrier and inhibit corrosion.

PE 89 Jacket:
Black, sunlight-resistant, linear low-density polyethylene.

Additional Standards:
• ANSI/ICEA S-84-608-1994 • RUS 7 CFR 1755.890 (formerly REA PE-8
