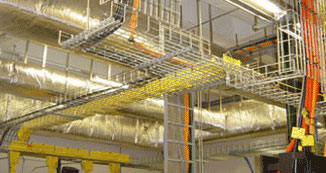

Supply is a cable tray supplier and cabletray distributor of Cablofil Wire Cable Tray products including
all sizes of cable trays including wire cable tray, wall brackets, ladder tray,
wire tray,underfloor support, hanging supports for very application from the telephone
closet to the network room to your co-location data center. Designed to make installation
simple and easy, Cablofil wire cable tray is truly a revolutionary advancement
in cable management. It’s easier because it requires fewer parts, making
installation less complicated. For cable tray product information and 'what is'
cable tray- please see complete information below which will help answer your
questions on cable tray applications and cable tray installations.
CABLOFIL Cable Fill Chart- Enables You To Quickly Determine How Many Cables( and Cable Types) Fit Into Cablofil's Cabletray and Raceway Systems
Cablofil's
US manufacturing facility is centrally located in the U.S. at Mascoutah Illinois,
this location is within easy shipping distance to all major metropolitan areas
throughout North America. This new facility houses Cablofil's U.S. corporate offices,
manufacturing lines and warehousing operations. The heart of the 80,000 square
foot facility is a technologically advanced manufacturing line for the production
of all widths of wire cable tray.For
decades, Cablofil has been providing effective and cable management solutions
throughout the world. Now as a global leader, Cablofil has set the pace in product
innovation, quality control and timely delivery, resulting in more than 50,000
miles of Cablofil cable tray installed worldwide.With
fewer parts-that saves valuable time…and money. A comprehensive range of
accessories allows for every possible installation configuration. When you’re
looking for the most efficient cable management installation anywhere, you can
rely on the Fast Assembly System (FAS) from Cablofil. FAS utilizes a simple one-step
process that requires no screws, bolts or other tools. All you need is a screwdriver!
Whether you’re designing a new cable management system, or retrofitting an
existing one, the FAS System allows you to save time and money—from planning
to installationCall us today for a price quote at (866) 650-DATA.
Deflection vs. Destruction
Cablofil is unique in its loading performance due to its wire mesh pattern. If an excessive load is applied to Cablofil Tray, its wire mesh structure does not break under load, but deflects gradually. Typical Cablofil safety factor is 4-5 using deflection based maximum load ratings(IEC). Typical ladder tray safety rating is 1.5 when tray is tested per NEMA VE1.
Cablofil wire cable tray is truly a revolutionary advancement in cable management. It’s easier because it requires fewer parts, making installation less complicated. That saves valuable time…and money. A comprehensive range of accessories allows for every possible installation configuration. When you’re looking for the most efficient cable management installation anywhere, you can rely on the Fast Assembly System (FAS) from Cablofil. FAS utilizes a simple one-step process that requires no screws, bolts or other tools. All you need is a screwdriver! Whether you’re designing a new cable management system, or retrofitting an existing one, the FAS System allows you to save time and money—from planning to installation.
----Makes Installation a snap!---
- FASTRUT attaches cabletray to strut without bolts and nuts or tools.
- Reduces installation time.
- Install FASTRUT on outer wires of cabletray, and both sides of the strut.
- F30 - CF54 2" - 24"
- F105 - CF150 50 - 600 mm Comes in Colors:
CF 30-CF54-CF105-CF150-TXF 35-EASY PACK-CFG-FCF 54-CFL-TXF 35

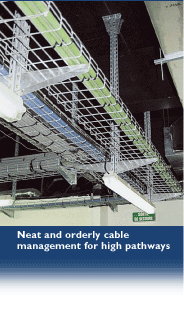

Since
its introduction, wire cable tray has proven to be the ideal choice for cable
management in virtually any type of electrical cable installation. First marketed
in Europe in 1972, Cablofil is already one of the best known brands in the U.S.
wire cable management market. This unique system was patented by the parent company
of Cablofil - Metal Deploye located in Montbard, France.
Recently,
Cablofil, Inc. has demonstrated its commitment to the American market by establishing
and maintaining a system of warehousing and distributions from coast to coast.
Cablofil, Inc. markets its wire cable tray from Canada to Brazil including the
U.S., Mexico and the Caribbean.
Cablofil's
US manufacturing facility is centrally located in the U.S. at Mascoutah Illinois,
this location is within easy shipping distance to all major metropolitan areas
throughout North America. This new facility houses Cablofil's U.S. corporate offices,
manufacturing lines and warehousing operations. The heart of the 80,000 square
foot facility is a technologically advanced manufacturing line for the production
of all widths of wire cable tray.
For
decades, Cablofil has been providing effective and cable management solutions
throughout the world. Now as a global leader, Cablofil has set the pace in product
innovation, quality control and timely delivery, resulting in more than 50,000
miles of Cablofil cable tray installed worldwide.
With
fewer parts-that saves valuable time…and money. A comprehensive range of
accessories allows for every possible installation configuration. When you’re
looking for the most efficient cable management installation anywhere, you can
rely on the Fast Assembly System (FAS) from Cablofil. FAS utilizes a simple one-step
process that requires no screws, bolts or other tools. All you need is a screwdriver!
Whether you’re designing a new cable management system, or retrofitting an
existing one, the FAS System allows you to save time and money—from planning
to installationCall us today for a price quote at (866) 650-DATA.
Makes Installation a snap!
- FASTRUT attaches cabletray to strut without bolts and nuts or tools.
- Reduces installation time.
- Install FASTRUT on outer wires of cabletray, and both sides of the strut.
- F30 - CF54 2" - 24"
- F105 - CF150 50 - 600 mm Comes in Colors:
Cablofil Fill Rato Diagram

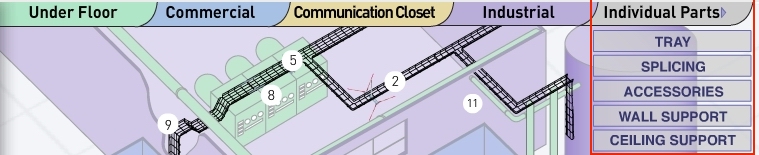

Cablofil Raceway System Components
 Link to Cablofil Spec check Here |
 |
Since
its introduction, wire cable tray has proven to be the ideal choice for cable
management in virtually any type of electrical cable installation. First marketed
in Europe in 1972, Cablofil is already one of the best known brands in the U.S.
wire cable management market. This unique system was patented by the parent company
of Cablofil - Metal Deploye located in Montbard, France.
Recently,
Cablofil, Inc. has demonstrated its commitment to the American market by establishing
and maintaining a system of warehousing and distributions from coast to coast.
Cablofil, Inc. markets its wire cable tray from Canada to Brazil including the
U.S., Mexico and the Caribbean.
Cablofil's
US manufacturing facility is centrally located in the U.S. at Mascoutah Illinois,
this location is within easy shipping distance to all major metropolitan areas
throughout North America. This new facility houses Cablofil's U.S. corporate offices,
manufacturing lines and warehousing operations. The heart of the 80,000 square
foot facility is a technologically advanced manufacturing line for the production
of all widths of wire cable tray.
For
decades, Cablofil has been providing effective and cable management solutions
throughout the world. Now as a global leader, Cablofil has set the pace in product
innovation, quality control and timely delivery, resulting in more than 50,000
miles of Cablofil cable tray installed worldwide.
Cablofil
is the Solution
Designed
to make installation simple and easy, Cablofil wire cable tray is truly a revolutionary
advancement in cable management. It’s easier because it requires fewer parts,
making installation less complicated. That saves valuable time…and money.
A comprehensive range of accessories allows for every possible installation configuration.
When you’re looking for the most efficient cable management installation
anywhere, you can rely on the Fast Assembly System (FAS) from Cablofil. FAS utilizes
a simple one-step process that requires no screws, bolts or other tools. All you
need is a screwdriver! Whether you’re designing a new cable management system,
or retrofitting an existing one, the FAS System allows you to save time and money—from
planning to installation.
Cablofil
is Easy!
Cablofil
is a cable tray concept based on performance, safety and economy, three qualities
which make Cablofil the cable tray system preferred by installers. Cablofil wire
cable tray adapts to the most complex configurations, and its structure gives
maximum strength for minimum weight. The ease of creating fittings, carried out
on site, as well as the wide range of unique and universal accessories gives complete
freedom in routing combined with exceptionally fast installation.
Performance
In all uses, without specific high loads, the Cablofil wire cable tray structure
allows a 6.6' span between supports.
Safety
In the case of excessive overload, the mesh structure of Cablofil wire cable tray
bends like a hammock, but does not break. "T" welding the lateral wires
to the top edge wires minimizes the risk of fraying cables and also protects installers
from sharp wire ends.

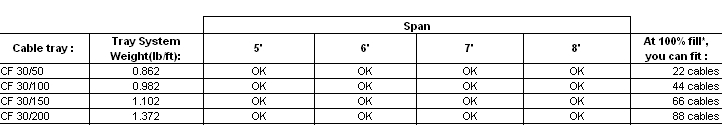

Data Cable Quick Reference
|
|
Loads in lbs/ft per span |
Max number of cables |
| Cable Tray |
Fill Area |
5' |
6' |
7' |
8' |
Cat 5e 4-pr Plenum (.17") |
Cat 5e 4-pr non-plenum(.19") |
Cat 6e 4-pr Plenum(.22") |
Cat 6a 4-pr Non-Plenum (.35") |
| CF30/50(1x2) |
2.17" |
|
|
|
|
47 cbls |
38 cbls |
28 cbls |
11 cbls |
| CF30/100(1x4) |
4.34" |
|
|
|
|
95 cbls |
76 cbls |
57 cbls |
22 cbls |
CF30/150(1x6) |
6.51" |
|
|
|
|
143 cbls |
114 cbls |
85 cbls |
33 cbls |
| CF30/200(1x8) |
8.68" |
|
|
|
|
191 cbls |
153 cbls |
114 cbls |
45 cbls |
| CF30/300(1x12) |
13.02" |
|
|
|
|
286 cbls |
229 cbls |
171 cbls |
67 cbls |
| CF54/50(2x2) |
4.03" |
32 |
15.1 |
11.1 |
9.1 |
88 cbls |
71 cbls |
53 cbls |
20 cbls |
| CF54/100(2x4) |
8.06" |
39.4 |
22.3 |
16.4 |
15.9 |
177 cbls |
142 cbls |
106 cbls |
41 cbls |
| CF54/150(2x6) |
12.09" |
46.5 |
27.6 |
20.3 |
19.1 |
266 cbls |
213 cbls |
159 cbls |
62 cbls |
| CF54/200(2x8) |
16.12" |
54.2 |
36.4 |
26.7 |
24.7 |
355 cbls |
284 cbls |
212 cbls |
83 cbls |
| CF54/300(2x12) |
24.18" |
71.6 |
47.1 |
34.6 |
31.7 |
532 cbls |
426 cbls |
318 cbls |
125 cbls |
| CF54/400(2x16) |
32.24" |
134.9 |
91.0 |
66.8 |
60.3 |
710 cbls |
568 cbls |
424 cbls |
167 cbls |
| CF54/450(2x18) |
36.27" |
134.9 |
91.0 |
66.8 |
60.3 |
798 cbls |
639 cbls |
477 cbls |
188 cbls |
| CF54/500(2x20) |
40.30" |
119.4 |
95.4 |
70.1 |
62.8 |
887 cbls |
710 cbls |
530 cbls |
209 cbls |
| CF54/600(2x24) |
48.36" |
119.4 |
95.4 |
70.1 |
62.8 |
1065 cbls |
852 cbls |
636 cbls |
251 cbls |
| CF105/100(4x4) |
15.97" |
68.3 |
46.4 |
34.1 |
30.5 |
351 cbls |
281 cbls |
209 cbls |
82 cbls |
| CF105/150(4x6) |
23.95" |
98.4 |
60.2 |
44.3 |
40.9 |
527 cbls |
422 cbls |
314 cbls |
124 cbls |
| CF105/200(4x8) |
31.93" |
109.4 |
76.2 |
56.0 |
51.9 |
703 cbls |
563 cbls |
419 cbls |
165 cbls |
| CF105/300(4x12) |
47.90" |
142.0 |
126.8 |
93.1 |
89.2 |
1055 cbls |
844 cbls |
629 cbls |
248 cbls |
| CF105/400(4x16) |
63.86" |
151.0 |
129.9 |
95.4 |
88.7 |
1406 cbls |
1126 cbls |
839 cbls |
331 cbls |
| CF105/450(4x18) |
71.84" |
151.0 |
129.9 |
95.4 |
88.7 |
1582 cbls |
1266 cbls |
944 cbls |
373 cbls |
| CF105/500(4x20) |
79.83" |
151.0 |
129.9 |
95.4 |
88.7 |
1758 cbls |
1407 cbls |
1049 cbls |
414 cbls |
| CF105/600(4x24) |
95.79" |
151.0 |
129.9 |
95.4 |
88.7 |
2110 cbls |
1689 cbls |
1259 cbls |
497 cbls |
CF150/150(6x6) |
34.41" |
127.5 |
123.0 |
90.4 |
89.1 |
788 cbls |
631 cbls |
469 cbls |
186 cbls |
| CF150/200(6x8) |
45.88" |
127.5 |
123.0 |
90.4 |
89.1 |
1010 cbls |
809 cbls |
603 cbls |
238 cbls |
| CF150/300(6x12) |
68.82" |
175.9 |
155.0 |
113.9 |
98.3 |
1515 cbls |
1213 cbls |
905 cbls |
357 cbls |
| CF150/400(6x16) |
91.76" |
175.9 |
155.0 |
113.9 |
98.3 |
2021 cbls |
1618 cbls |
1206 cbls |
476 cbls |
| CF150/450(6x18) |
103.23" |
175.9 |
155.0 |
113.9 |
98.3 |
2273 cbls |
1820 cbls |
1357 cbls |
536 cbls |
| CF150/500(6x20) |
114.70" |
228.5 |
165.7 |
121.7 |
91.3 |
2526 cbls |
2022 cbls |
1508 cbls |
596 cbls |
| CF150/600(6x24) |
137.64" |
228.5 |
165.7 |
121.7 |
91.3 |
3031 cbls |
2427 cbls |
1810 cbls |
715 cbls |
Economy
Installation time is reduced and no expensive preformed fittings have to be specially
planned for or ordered. Fast, simple shaping can be carried out entirely on site.
A bolt cutter, screw driver and a wrench are the only tools required to create
the most complex of cable runs. A wide range of unique supports improves installation
time even more. The tray is so easy to manipulate, one person can install a system
unaided.
What
is Cable Tray?
1. What is a Cable Tray System?
2. What standards / guidelines are available
for cable tray systems?
3. What types of Cable Tray are available?
4.
How do I know what type of cable tray is right for my application?
5. What
materials / finishes are available for the various cable tray systems?
6.
Now that I know what types of cable trays are available, what configurations are
available?
7. After selecting the type of cable tray and configuration required,
what support methods are available?
8. Before selecting the type of cable
tray, cable tray configuration(s), and support method desired, what additional
information do I need to supply to the cable tray manufacturer for them to best
understand and satisfy my needs?
What
is a Cable Tray System?
Per
the National Electrical Code, a cable tray system is "a unit or assembly
of units or sections and associated fittings forming a rigid structural system
used to securely fasten or support cables and raceways."
What does this
mean?
* Cable trays support cable the way that roadway bridges support traffic.
* A bridge is a structure that provides safe passage for traffic across open spans.
* Cable tray is the bridge that allows for safe transport of wires across open
spans.
* Therefore, think of cable tray as the structural component of a building's
electrical system.
What
standards / guidelines are available for cable tray systems?
1. The National Electrical Code publishes the standards for all types of electrical
applications. Articles 318, 250, and 800 cover various aspects of cable tray systems.
2. NEMA, (National Electrical Manufacturers Association), is an association comprised
of the major cable tray manufacturers in the industry. This committee has published
three documents to date: NEMA VE1, FG1 and VE2.
NEMA VE1 covers general cable tray definitions, manufacturing standards, performance
standards, test standards, and application information. Free download of this
document is available on the NEMA website.
NEMA FG1 addresses the standards for fiberglass cable tray systems. Free download
of this document is available on the NEMA website.
NEMA VE2 is a cable tray installation guideline which covers receiving and unloading
material, storage of material, and general installation practices. Free download
of this document is available on the NEMA website.
3. CTI, (Cable Tray Institute),
is a trade association comprised of the major cable tray manufacturers in the
industry and was formed to provide specifiers, designers, and installers information
on the advantages of using cable tray systems over other types of products. (i.e.
conduit, ladder rack, etc.)
What
types of Cable Tray are available?
1. Ladder
2. Solid Bottom
3. Trough
4. Channel
5. Wire Mesh
6. Single Rail
How
do I know what type of cable tray is right for my application?
1. Ladder Cable Tray provides:
1. Solid side rail protection and system strength
with smooth radius fittings and a wide selection of materials and finishes.
2. maximum strength for long span applications
standard widths of 6,12,18,
24, 30, and 36 inches
3. standard depths of 3, 4, 5, and 6 inches
4. standard
lengths of 10, 12, 20 and 24 feet
5. rung spacing of 6, 9, 12, and 18 inches
Ladder cable tray is generally used in applications with intermediate to
long support spans, 12 feet to 30 feet.
2. Solid Bottom Cable Tray provides:
1. Nonventilated continuous support for delicate cables with added cable protection
available in metallic and fiberglass.
2. Solid bottom metallic with solid
metal covers for nonplenum rated cable in environmental air areas
3. standard
widths of 6, 12, 18, 24, 30, and 36 inches
4. standard depths of 3, 4, 5,
and 6 inches
5. standard lengths of 10, 12, 20 and 24 feet
Solid Bottom
cable tray is generally used for minimal heat generating electrical or telecommunication
applications with short to intermediate support spans of 5 feet to 12 feet.
3. Trough Cable Tray provides:
1. Moderate ventilation with added cable
support frequency and with the bottom configuration providing cable support every
4 inches. Available in metal and nonmetallic materials.
2. standard widths
of 6, 12, 18, 24, 30, 36 inches
3. standard depths of 3, 4, 5, and 6 inches
4. standard lengths of 10, 12, 20 and 24 feet
5. fixed rung spacing of 4 inch
on center
Trough cable tray is generally used for moderate heat generating
applications with short to intermediate support spans of 5 feet to 12 feet.
4. Channel Cable Tray provides:
1. an economical support for cable drops
and branch cable runs from the backbone cable tray system.
2. standard widths
of 3, 4, and 6 inches in metal systems and up to 8 inches in nonmetallic systems.
3. standard depths of 1¼-1¾ inches in metal systems and 1, 1 1/8,
1 5/" and 2 3/16 inches in nonmetallic systems
4. standard length of
10, 12, 20 and 24 feet
Channel cable tray is used for installations with
limited numbers of tray cable when conduit is undesirable. Support frequency with
short to medium support spans of 5 to 10 feet.
5. Wire Mesh Cable Tray
provides:
1. A job site, field adaptable support system primarily for low
voltage, telecommunication and fiber optic cables. These systems are typically
steel wire mesh, zinc plated.
2. standard widths of 2, 4, 6, 8, 12, 16, 18,
20, and 24 inches
3. standard depths of 1, 2, and 4 inches
4. standard
length of about 10 feet (118")
Wire Mesh tray is generally used for
telecommunication and fiber optic applications and are installed on short support
spans, 4 to 8 feet.
6. Single Rail Cable Tray provides:
1. These
aluminum systems are the fastest systems to install and provide the maximum freedom
fort cable to enter and exit the system.
2. Single hung or wall mounted systems
in single or multiple tiers.
3. Standard widths are 6, 9, 12, 18, and 24 inches.
4. Standard depths are 3, 4, and 6 inches.
5. Standard lengths are 10 and
12 feet.
Single Rail Cable Tray is generally used for low voltage and power
cables installations where maximum cable freedom, side fill, and speed to install
are factors.
What
materials / finishes are available for the various cable tray systems?
1. Steel (Min. Yield = 33KSI) (35 KSI for Stainless)
1. Plain: hot rolled
pickled and oiled steel per ASTM A569 (Commercial Quality) or A570 (Structural
Quality)
2. Pre-Galvanized: mill galvanized steel per ASTM A653 CS (Commercial)
or SS (Structural) G90
3. Hot Dip Galvanized After Fabrication: plain steel
which is hot dipped after fabrication per ASTM A123.
4. Stainless Steel: type
304 or 316L fully annealed stainless steel
2. Aluminum (Min.Yield =
23 KSI)
1. 6063-T6 or 5052-H32 alloy per ASTM B209
3. Fiber Reinforced
Plastic (FRP)
1. Polyester and Vinyl Ester resin systems available
2.
meet ASTM E-84 smoke density rating; Polyester 680, Vinyl Ester 1025
3. Class
1 Flame Rating and self-extinguishing requirements of ASTM D-635.
Now
that I know what types of cable trays are available, what configurations are available?
1. Straight sections are available to route cables in a horizontal or vertical
plane.
2. Fittings are available to route cables in various directions in
either the horizontal or vertical planes. Typical examples of fittings include
elbows, tees, crosses, and risers. Each of these fittings are available in various
radii and bend angles.
3. Covers are accessories and shouldn't be in here
unless splices etc. are included.
After
selecting the type of cable tray and configuration required, what support methods
are available?
1. Trapeze Support (Single or Multi-tier)
2. Hanger rod clamps, "J" hangers
3. Center Hung Support
4. Wall Support
5. Underfloor Support
6. Pipe stanchions or other structures
Each
of these support methods are preferable in different applications. For instance,
trapeze supports may be desired in an application where cables will be pulled
through the cable tray. Center hung supports, on the other hand, are generally
used when cables will be installed from the side of the cable tray. Center hung
supports are especially useful when future cable additions are desired. Wall supports
and underfloor supports are useful when ceiling structure is not available or
undesired. Outdoor installations are controlled by the structures available to
support the cable tray.
Before selecting the type of cable tray, cable tray
configuration(s), and support method desired, what additional information do I
need to supply to the cable tray manufacturer for them to best understand and
satisfy my needs?
1. Where? Job site and installation considerations
1. Outdoor
1. supports
available affect the length and strength requirements
2. environmental loads,
ice, wind, snow, and possibly seismic
3. corrosion requirements affect the
materials and finishes
4. classified hazardous locations affect the cable
types acceptable
2. Indoor
1. support locations available affect the
length and strength of the system
2. industrial installation may require a
200 lb. Concentrated Load
3. commercial or institutional installation may
make system appearance, system weight, and space available important factors
4. environmental air handling area may affect cable types, cable tray material,
or cable tray type and need for covers
5. classified hazardous locations affect
the cable types acceptable
2. What?
1. Type and number of cables to support
1. NEC cable fill requirements
dictate size, width and depth, of system
2. cable support requirement may
control bottom type
3. largest bending radius of cable controls fitting radius
4. total of cable weight determines load to support
2. Future requirements
1. cable entry / exit freedom
2. design partially full or an expandable system
3. support type to allow for needs
Key
Features- Applications
• Requires NO bending or cutting; ready–made 4-way, “T” and
“L” shaped junctions
• Conforms to the National Electric Code,
UL Classified
• Acts as a continuous ground conductor; no grounding splices
• Adapts to difficult architectural designs to accommodate changes in direction
and elevation of cable runs
• Cuts installation time up to 50 percent
• Provides strength, rigidity without additional hardware; has smooth edges
• Manufactured in an array of protective, powder-coated, colored finishes
to minimize corrosion
• Featured in light or heavy duty product styles
• All support hardware available
• Powder coating is standard finish
• Custom sizes available
We
are Updating Our Website- Please Call Us Your Cablofil Part Number or Requirement
and We WIll Provide You With An Immediate Quote
