Wave
Division Multiplexing-WDM's- WDM-DWDM-Dense Wave Division Multiplexing-CWDM-
CWDM Switches
Wavelength Division Multiplexing -WDM-is a method of transmitting data from different sources over the same fiber optic link at the same time whereby each data channel is carried on its own unique wavelengthover a fiber optic cable.Typically WDM is using to increase signalling and bandwidth capacity over singlemode fiber optic cable, The result is a link with an aggregate bandwidth that increases with the number of wavelengths employed. In this way WDM technology can maximize the use of the fiber optic infrastructure that is available; what would normally require two or more fiber links instead requires only one. Dense Wave Division Multiplexing (DWDM) combines up to 64 wavelengths onto a single fiber. DWDM technology uses an ITU standard 100GHz or 200GHz spacing between the wavelengths, arranged in several bands at ~1500-1600nm. With DWDM technology, the wavelengths are close together (compared to CWDM), meaning that transponders are generally more complex and expensive than CWDM. However, with DWDM, the advantage is a much higher density of wavelengths, and also longer distances, especially with MRV's low dispersion solution for the Fiber Driver-LD system. WDM technology is made up of a number of building blocks. When put together into a network, these blocks provide a complete solution for multi-wavelength services, and bandwidth enhancement over a single or dual fiber strand.. Some WDM Components include.... WDM-LC-MU
Cables
WDM Distance-Optical Budgets Optical
Budget
Transmit
Power: how much power is transmited by the laser Transmit Power: How
much power is transmited by the laser Dispersion: WDM technology is made up of a number of building blocks. When put together into a network, these blocks provide a complete solution for multi-wavelength services, and bandwidth enhancement over a single or dual fiber strand. Add/Drop
& Multiplexing:
For Flash Demo Multiplexing
is the process of combining several data streams operating at
unique wavelengths on several fibers onto a single fiber "trunk".
Demultiplexing is just the opposite, taking a fiber trunk and
separating it into individual fibers, each transporting a different
wavelength signal. An Add/Drop Multiplexer takes a single wavelength from a trunk, pulls the signal out, and allows a new signal at the same wavelength to be inserted into the trunk at (roughly) the same spot. All the other wavelengths pass through the add/drop mux with only a small loss of power (usually a few dB). This concept is especially important when planning WDM networks, and plays an important role in the overall distance a WDM network can span. Sub-Rate
Multiplexing:
For Flash Demo Sub-rate
Multiplexing is the process of placing several data streams onto
a single wavelength, in an effort to further increase the number
of data streams in a WDM system. There are several mechanisms
of sub-rate multiplexing: This example shows how multiple channels of ESCON can be converted with the Fiber Driver-LD ESCON Solution into a single wavelength before wave division multiplexing, allowing up to 64 ESCON channels on a 16 wavelength CWDM system, or hundreds of ESCON channels using DWDM. The LD product also offers 2-Port Gigabit Ethernet Multiplexing modules. Cross-Connects:
For Flash Demo A
cross-connect is a device that allows an administrator to select
which port will have a connection to which other port or ports.
This example shows the configurability of the NC316-XP Media Cross
Connect. Cross-connects have several uses in WDM systems:

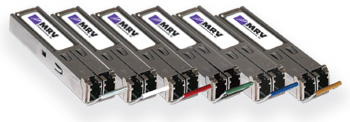

Pluggables WDM Products With the combined benefits of SFP interfaces, multi-rate, multi-port transponders and passive Mux/Demux technology incorporated into a modular, 'building block' architecture, the Fiber Driver Pluggable Modular WDM system delivers an unprecedented level of WDM flexibility and scalability, including distances of 100km and resilient ring topologies, while lowering deployment and maintenance costs, reducing parts inventory and improving RO
SFP-Based
Cross Connects:
