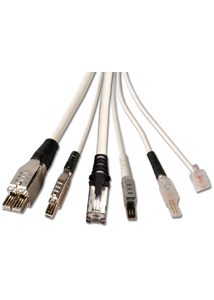

Data Supply carries the SIEMON TERA CAT 7 patch cords and stocks several lengths of the new CAT 7 Patch Cords and CAT 7 Patch Cables
along with our molded- booted CAT 6 Patch Cords and patch cables. Category 7/Class F (ISO/IEC 11801) cable specifications require transmission frequencies of up to 600 MHz over 100 meters of fully shielded copper cabling. CAT7 cable consists of four individually shielded pairs inside an overall braided shield, also known as Shielded Twisted Pair Cable (SSTP), or S/FTP (Shielded Foil Twisted Pair). CAT7 features even more stringent specifications for crosstalk and system noise than CAT6, and is designed specifically for Gigabit Ethernet applications (Gigabit over copper).
Part of the Siemon TERA cabling solution, TERA-to-TERA patch cords deliver twice the bandwidth of category 7A/class FA specifications when combined with the TERA outlet. TERA delivers up to 1.2 GHz of bandwidth per pair, providing the extra bandwidth critical for demanding applications like Broadband Video, with an upper frequency requirement of 862 MHz. Facilitated by 1- and 2-pair patch cords, TERA’s extended performance also supports cable sharing — the simultaneous convergence of video, voice and data onto a single 4-pair cable and outlet.
Use 2nd (XX) to specify boot color: 01 = black, 02 = white, 03 = red, 05 = yellow, 06 = blue, 07 = green
Note: Field termination of TERA-to-modular plug patch cords is not recommended and is not compliant with Siemon warranty.
T7P4-B(XX)-1
Category 7A/class FA 4-pair TERA plug with colored boot, compatible with 0.64 - 055mm (22 - 23 AWG) solid S/FTP cable
Use 2nd (XX) to specify boot color: 01 = black, 02 = white, 03 = red, 05 = yellow, 06 = blue, 07 = green
Note: Field termination of TERA-to-modular plug patch cords is not recommended and is not compliant with Siemon warranty.
Boots match cable color. Custom modular cable assemblies are available.Category 7 cable (Cat 7), (ISO/IEC 11801:2002 category 7/class F), is a cable standard for Ethernet and other interconnect technologies that can be made to be backwards compatible with traditional Cat 5 and Cat 6 Ethernet cable. Cat 7 features even more strict specifications for crosstalk and system noise than Cat 6. To achieve this, shielding has been added for individual wire pairs and the cable as a whole.
The Cat 7 cable standard has been created to allow 10 Gigabit Ethernet over 100 m of copper cabling (also, 10-Gbit/s Ethernet now is typically run on Cat 6a). The cable contains four twisted copper wire pairs, just like the earlier standards. Cat 7 can be terminated either with 8P8C compatible GG45 electrical connectors which incorporate the 8P8C standard or with TERA connectors. When combined with GG45 or TERA connectors, Cat 7 cable is rated for transmission frequencies of up to 600 MHz.
Same as Cat6 patch cords, except that are made to a higher standard (see comparison chart below). The Cat7 standard is still in the works (as of this writing) and is not yet part of the 568A standard. One major difference with cat7 patch cables and patch cords (as compared with cat 5, cat5e, and cat6 patch cables) is that all 4 pairs are individually shielded, and an overall shield enwraps all four pairs. Cat7 patch cords will use an entirely new connector (other than the familiar RJ-45 used for cat 5, cat 5e and cat 6 patch cords).
CAT5, CAt5e, CAt6 and CAt7 Patch Cable Performance Specification Chart
Parameter
Cat5 Patch Cables
and Class D with additional
requirements TSB95
and FDAM 2
Cat5e Patch Cables ('568-A-5)
Cat6 Patch Cables
Class E (Performance at
250 MHz shown
in parentheses)
Proposed
Cat7 Patch Cables
Class F (Performance at
600 MHz shown
in parentheses)
Ask For Extreme Discounts On CAT 6 Patch Cords For Quantities of 100- 10,000- 1000.000 Pieces or more!
We Now Offer Outdoor Cat 5e Patch Cords-Cut Custom To Your NeedsPlease See Our Outdoor CAT 5e Cable Specifications-SPECS- Our Outdoor Rated CAT 5e patch cords and Outdoor Patch Cables are pre-cut to a specific length- then terminated on both ends - tested and shipped the same day
We Will Have The Below Cable Availabel Soon!!!!! We Cannot Ship These Yet!
PRICE! CAT 5e Outdoor Rated- Direct BuryPatch Cords Description- All Our Outdoor CAT 5e Patch Cords and Outdoor CAT 5e Cables Are Custom Made Daily To Your Specific Requirements Our CUSTOM PATCH CORDS CAN BE MADE IN ANY LENGTH AT A MODEST PRICE- no one else in the USA offers this service! WE STOCK ALL SIZES BELOW
Cat 6 is completely backward-compatible with current Cat5e equipment. Our Cat 6 Cables are composed of 4 pairs 24 AWG stranded conductors with PVC jackets. Conductors are wired to gold plated RJ45 plugs in accordance with the TIA/EIA 568B standard (Telephone Industry Association/Electronics Industry Association.) They consist of a foil shield with drain wire to protect signals from external noise. Available in nine colors. Boots match cable color. Custom modular cable assemblies are available.
Cat6 cable specifications require stagger terminated wiring, as shown above. Cat 6 Shielded Cable is used in network applications such as 10Base-T, 100Base-T, 1000Base-T Ethernet technology to 100 meters (328 feet), and have been designed specifically for Gigabit Ethernet applications (Gigabit over copper). They perform at high-data transfer rates, and work with ATM and gigabit speed products. These cables deliver improved performance over standard Cat5e cables.
Yellow-- --White---- -Red---------Blue-------Black----- Green
Ordering Information Below- Available in these colors:
Our
CAT 6Patch Cords use compliant stranded wire as specified by the latest published
TIA guidelines to ensure adequate 'flex life’ and long term channel integrity.
All of our CAT 6 Patch Cords have quality construction to maintain the quality
of signal transmission at the cross-connect, which is critical to the performance
of the entire cabling systemUse our Patch Cords for all types of networking, voice
and even video applications (using baluns). They are approved for use with10Base-T,
100Base-T, 1000Base-T, and Token Ring-type 3. Each one is fully compliant with
the Cat. 5e specification and exceeds the requirements of Ethernet IEEE 802.3ab
and Token Ring UTP IEEE 205.5, (Category 5e and Category 6) and Patch Cords products
including structured cabling products, Smart Home Cable, Smart Home Panels, and
CAT 5-6 Testers
The combined engineering expertise has
produced the industry's preeminent performance in Category 6 cabling
systemsOur Cat 6 gigabit Patch Cords deliver channel performance that exceeds all proposed current TIA/EIA and ISO/IEC Class E Category 6 channel requirements.
Best of all, the results are supported through our Gigabit Patch Cable LifeTime Warranty, which provides you with the industry's most advanced coverage. Our Gigabit CAT 6A Patch Cables are backward compatible with components and systems of lower performing categories.
Features:
• Our Cat 6 Patch Cords exceptional bandwidth capabilities may allow Gigabit Ethernet operation without complex DSP (Digital Signal Processing) electronics required for Category 5e
• Increased usable bandwidth
• Optimized ACR
• Optimally tuned performance
• Components meet all current
• Category 6 draft requirements
Benefits:
• Improved network performance and reliability
• Lower ownership costs
• Supports applications beyond Gigabit Ethernet (future-proof)
• Provides additional margin for external noise cancellation
• Error-free data transmission
• Exclusive warranty coverage
We also custom manufacture the following custom patch cables:
4 Pair UTP Stranded Cables-Gigabit Ethernet cableGigabit Patch Cables110 Block 110 Type Patch Cords50/125 Fiber Optic Cables 62.5/125 Fiber Optic Cables BNC to BNCCategory 3 Patch CablesCategory 4Category 5, Category 5E, Cat 5, cat 5e Category 5E Crossover Category 5E Shielded Category 5E Value-Packs Category 6, Cat 6 Category 6 CrossoverCategory 6e, Cat 6e Patch CablesCategory 7, Cat 7Two-Pair Telco Patch CablesTelco CablesTelco 50, Telco64E1/T1 patch cablesE3/T3 Patch Cords
Telphone Token Ring Transceiver RJ45 to RJ45 - wired to your specifications 110 Style Patch Cables, custom manufactured
Patch cables are available in any combination. All cables are 100% tested. Same day service for rush orders available. Please contact us to inquire about all your cable needs!
Part of the Siemon TERA cabling solution, TERA-to-TERA patch cords deliver twice the bandwidth of category 7A/class FA specifications when combined with the TERA outlet. TERA delivers up to 1.2 GHz of bandwidth per pair, providing the extra bandwidth critical for demanding applications like Broadband Video, with an upper frequency requirement of 862 MHz. Facilitated by 1- and 2-pair patch cords, TERA’s extended performance also supports cable sharing — the simultaneous convergence of video, voice and data onto a single 4-pair cable and outlet.
Outdoor Rated CAT 6 Patch Cords-Custom Built
Call
For Pricing- (866) FIBER-21 or (866) 342-3721
