Plenum Innerduct.com Is Your One Source For Plenum Innerduct, Plenum Duct, Plenum Corrugated Innderduct, Plenum Corrugated Duct- Plenum Duct CALL Us At (866) 342-3721 - A Division of American Teledata Made In USA Cable     Plenum Innerduct, a divison of American Teledata will Provide You With On- Time Quotations- for all Plenum Innerduct, riser innerduct, corrugated, zero halogen and smoothwall for your outdoor innerduct requirement. We always offer you A Low Price Guarantee On All Products along with On time Freight Tracking & Delivery Confirmation-and No- Cost Design-Engineering Of Your Network- for American Teledata customer service please call (866) 342-3721. Plenum Innerduct, a division of ATD is collectively one of the leading distributors of OSP- outside plant , innerduct along with new and refurbished state-of-the-art gigabit swtiches and hundreds of types of fiber optic cable and network switches, fiber optic assemblies, and much more. We redefine customer service excellence through engineering, custom kitting, and unsurpassed service. American Teledata stocks one some the largest inventories of copper- CAT 5E,CAT6 cable, CAT 5E and CAT6-7 patch cords, fiber jumpers and Made in America CAT6 Cable, CAT 5e Cable, Coax, Fiber Optic Cable in the USA.

Plenum Innerduct

Plenum Innerduct Carries a complete line of plenum innerduct and plenum raceway products including Plenum Fiber Duct, Outside Plant Conduit, Plenum Innerduct, Riser Rated Innerduct, Corrugated Innerduct and more. Plenum Duct is a flexible, non-metallic, corrugated raceway used for effective cable and fiber optic management within interior raceways. Premier-Plenum meets UL-(910) standards for the National Electrical Code, Article 770, and satisfies UL-2024 standards for low smoke and flame propagation. Our Plenum duct is offered in 1" and 1 1/4", with pre-installed pull tape for easy cable installation. The standard color is orange and is offered in a variety of other colors. Sequential marked footage is standard.

Custom options, such as multiple colors per reel and Slit Duct, are also available. We have three manufactures including Premier Corrugated HDPE which is manufactured from High Density Polyethylene (HDPE) and is intended to be placed inside of existing innerduct. It’s ideal for pulls under 1000 ft. and is designed to reduce surface contact when pulling cable. This lightweight product offers maximum flexibility, and allows for installation in small or restricted areas. Corrugated duct is available in 1", 11/4" and 11/2". The standard color is orange and is offered in a variety of other colors. Sequential marked footage is standard. Custom options, such as multiple colors per reel and Slit Duct, are also available.

Plenum Innerduct an innerduct and duct supplier specializes in fast turnaraound for a Complete Line of Innerduct and Raceway Products including Innerduct, High Density Polyethlene Duct, Outside Plant Innerduct, HDPE, Most OSP Duct ,Plenum Innerduct,Corrugated Innerduct, Corrugated HDPE, Riser Rated Innerduct, Outside Plant Conduit, Fiber Optic duct and our custom Pre-Installed Fiber In Duct. Plenum Innerduct's HDPE innerduct is available in sizes ranging from 1/2" to 6" inches in diameter with several SDR or HDPE innerduct wall thickeness. Plenum Innerduct stocks many sizes of innerduct and can ship most innerduct orders including custom- including colored innerduct within 48 hours. Our corrugated HDPE is manufactured from High Density Polyethylene (HDPE) and is intended to be placed inside of existing duct. Our corrugated innerduct is ideal for pulls under 1000 ft. and is designed to reduce surface contact when pulling cable. This lightweight product offers maximum flexibility, and allows for installation in small or restricted areas. Our Corrugated innerduct is available in 1" and 1 1/4". The standard color is orange and is offered in a variety of other colors. Sequential marked footage is standard. Custom options, such as multiple colors per reel and Slit Duct, are also available.

Plenum Innerduct will provide all your innerduct needs from one 250 coil to a several truckloads of 6" HDPE. Call us today for a competitive price and let us take care of all the logistics of delivering our product to your door.

American Data Supply Guarantees "the Best Pricing On All Innerduct."

American Data Supply is an active CCR registered supplier for the United States Government

We Can Ship the Same Day! Many Colors Available!

SEE BELOW ORDERING INFO for 1" & 1.25" Plenum Innerduct- Is In "RED" [prices do not include shipping, FOB point PA]

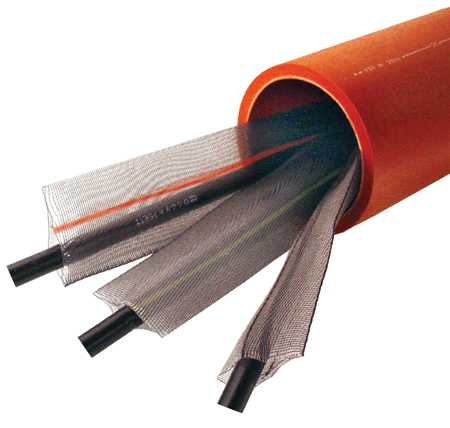

OurPlenum Innerduct Meets UL 910 & UL 2024- New 85% Fill Ratio Maxcell!

Plenum Available at 1- 1/2" and HDPE Innerduct Available in 1/2" to 6" Sizes

Pricing for 1" & 1.25" Plenum Innerduct- Is In "RED" [prices do not include shipping, FOB point PA]

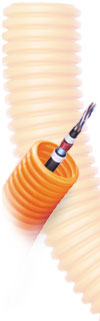

Premier Plenum Duct is a flexible, non-metallic, corrugated raceway used for effective cable and fiber optic management within interior raceways. Premier Plenum meets UL-(910) standards for the National Electrical Code, Article 770, and satisfies UL-2024 standards for low smoke and flame propagation.

Premier Plenum is offered in 1", 11/4" and 11/2, with pre-installed pull tape for easy cable installation. The standard color is orange and is offered in a variety of other colors. Sequential marked footage is standard. Custom options, such as multiple colors per reel and Slit Duct, are also available.

Future growth or maintenance of your interior cable system is made easy with Premier Plenum.



Plenum Reels Ordering Information

Size	Color	Part No.	Nominal i.d.	Nominal O.D.	Pull Tape	Reel Size	Reel Length (ft.)	Pricing- Call- We cannot Offer ONLINE Pricing Due To Daily Prices in Oil and Resin Prices
1"	Orange	P-100T-500	1.049"	1.35"	900 lb	36-36-21	500	CALL
1"	Orange	P-100T-1000	1.049"	1.35"	900 lb	36-36-21	1000	CALL
1"	Orange	P-100T-2000	1.049"	1.35"	900 lb	44-36-21	2000	CALL
1"	Orange	P-100T-2800	1.049"	1.35"	900 lb	48-41-24	2800	CALL
1"	Orange	P-100T-5000	1.049"	1.35"	900 lb	66-41-24	5000	CALL
1"	Orange	P-100T-6000	1.049"	1.35"	900 lb	72-41-24	6000	CALL
1"	Orange	P-100T-9000	1.049"	1.35"	900 lb	82-41-24	9000	CALL
11/4"	Orange	P-125T-700	1.25"	1.56"	900 lb	36-36-21	700	CALL
11/4"	Orange	P-125T-1500	1.25"	1.56"	900 lb	44-36-21	1500	CALL
11/4"	Orange	P-125T-1800	1.25"	1.56"	900 lb	48-41-24	1800	CALL
11/4"	Orange	P-125T-3400	1.25"	1.56"	900 lb	66-41-24	3400	CALL
11/4"	Orange	P-125T-4000	1.25"	1.56"	900 lb	72-41-24	4000	CALL
11/4"	Orange	P-125T-6000	1.25"	1.56"	900 lb	82-41-24	6000	CALL
11/2"	Orange	P-150T-500	1.57"	1.80"	900 lb	36-36-21	500	CALL
11/2"	Orange	P-150T-700	1.57"	1.80"	900 lb	44-36-21	700	CALL
11/2"	Orange	P-150T-1000	1.57"	1.80"	900 lb	48-41-24	1000	CALL
11/2"	Orange	P-150T-2500	1.57"	1.80"	900 lb	66-41-24	2500	CALL
11/2"	Orange	P-150T-3500	1.57"	1.80"	900 lb	72-41-24	3500	CALL
11/2"	Orange	P-150T-5000	1.57"	1.80"	900 lb	82-41-24	5000	CALL

Plenum Coils

Size	Color	Part No.	Nominal i.d.	Nominal O.D.	Pull Tape	Coil Length (ft.)
1"	Orange	P-100T-500	1.049"	1.35"	900 lb.	Up to 500
1 1/4"	Orange	P-125T-500	1.25"	1.56"	900 lb.	Up to 500
1 1/2"	Orange	P-150T-350	1.57"	1.80"	900 lb.	Up to 350

Test Results (Using Test Method UL-2024)

Properties	Value
Smoke peak optical	0.02
Smoke average optical density	0.01
Max. flame spread distance (ft.)	1.5'
Max. flame temperature	554°

Sample Part Number

P	100	T	S	2500
Plenum	1" (I.D.)	Polyester Tape	*Slit Duct (optional)	Put-Up
* Pull tape not available w/ Slit Duct



Split Corrugated

Features & Benefits

• No special tools required, simply twist locks together
• Pre-slit design for easy installation over existing cables
• Flexible corrugated design, readily adapts to cable orientation
• Lightweight coils for easy deployment
• Bright orange color for quick identification
• Available in several diameters from 3/4" to 2" for protecting single or multiple cables

GENERAL INFORMATION

Our Slit is a corrugated slit conduit for use where additional protection and identification is required, such as in underground handholes. Available in bright orange color for rapid identification or aerial (UV formulated) black for use in areas where exposure to sunlight will occur. Fiber-Guard Slit is manufactured in five diameters from 3/4" to 2" in standard 250-ft.coils. Special lengths can be made available upon request but minimum quantities may apply.



• Flexible and can be worked easily in tight areas. • Ribbed duct is available with SILICORE® Super Slick Permanent Lining. • Available with sequential markings in feet or meters. • Can withstand typical pulling loads and is highly resistant to crushing forces. • High Density Polyethylene (HDPE) resists oils, gasoline and other compounds.• Outside ribbed is ideal when installing multiple sub-ducts into a larger main duct.

Smoothwall Ribbed Corrugated Figure 8 Aerial Piggyback Pinpoint Cablecon Plenum (Fire Jacket) Microduct Accessories

Plenum innerduct is offered in 1"and 11/4", with pre-installed pull tape for easy cable installation. The standard color is orange and is offered in a variety of other colors. Sequential marked footage is standard. Custom options, such as multiple colors per reel and Slit Duct, are also available.

We Carry A Complete Array of Innerduct Couplers

Future growth or maintenance of your interior cable system is made easy with innerduct or raceway systems below-

Raceway Systems-

UL Listed

We can deliver a 500 Foot Reel of Innderduct (NOT PLENUM) to Most Locations In the United States For As Little As $150.00 Per 500 Foot Coil

Colors and Identification

• Standard colors available in: white, black, blue, green, red, orange, lilac, grey, yellow, brown, buff, terra cotta.
• Striping: Striping combinations are available in all colors in combinations of single, double, triple and quad stripes.

Other Identification

• Innerduct size, SDR and sequential footage markings every 2’ are laser imprinted on every order.
• Custom imprints such as company name, project name or any other special identification markings also available

Options

• Lubrication
• Up to four lengths/colors of innerduct per reel available laid in parallel or segmented on a reel.
• Pre-installed pull tape, tracer tape

	Smooth Wall Innerduct 1/2" to 6" Diameter Smooth wall is the standard High Density Polyethylene (HDPE) Duct. The interior of smooth wall has a glass-like finish which delivers the lowest coefficient of friction of all available non-lubricated innerducts. Blue Diamond smooth wall innerduct is a durable high quality product for direct burial applications.
	Ribbed Wall Innerduct Smooth Wall Innerduct 1/2" to 6" Diameter Blue Diamond’s ribbed wall innerduct is designed to allow extremely long cable pulls to glide through the interior raised ribs. All ribbed wall innerduct is internally ribbed and available in any SDR and SIDR rating.
	Tracer Wire Innerduct Smooth Wall Innerduct 1/2" to 6" Diameter Tracer wire innerduct provide a method of locating underground fiber optic cable. The tracer wire is a single copper wire co-extruded into the innerduct providing a corrosion resistant conductor. An alternative method of locating buried fiber optic cable is to use detectable tape, available pre-installed in any of our duct products.
	Figure 8 Duct Smooth Wall Innerduct 1/2" to 6" Diameter Blue Diamond’s figure 8 innerduct features a high tensile galvanized support strand for aerial placement of duct. The support strand is an integral component of the co-extruded duct.

How to build a part number


Duct Plugs

Blue Diamond duct plugs seal your conduit or innerduct from water, animals, debris or any other underground intrusion. Available in various sizes and models, duct plugs are designed for easy retrofitting and removal. Duct plugs help protect and seal occupied and unoccupied conduit and innerduct in an extensive range of applications.
